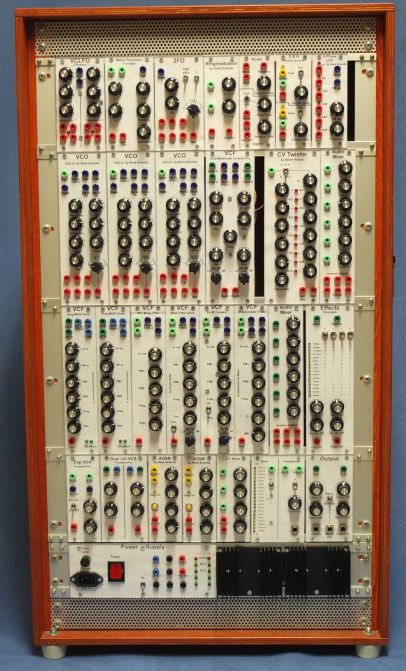

1. row 3 HE (from the left to the right):
- dual VCLFO (Formant)
- Wave Processor (Formant)
- 2FO double frequency oszillator (connected to the 3rd VCO)
- ringmodulator by René Schmitz
- analogue and digital noise generators
- 2 sample and hold (one fast, one slow) by René Schmitz
- 6 phase LFO (based on the 3 phase LFO by René Schmitz)
|
2. row 5 HE (from the left to the right):
- VCO 3+ by René Schmitz
- VCO 3+ by René Schmitz
- VCO 3+ by René Schmitz (connected to the 2FO)
- VCF Dual Multimode (Formant Pro)
- CV Twister by Grant Richter
- audio mixer with 6 inputs
|
3. row 5 HE (from the left to the right):
- VCF Korg MS 20 clone by Jörg Schmitz an René Schmitz
- VCF Korg MS 20 clone by Jörg Schmitz an René Schmitz
- VCF Mini Moog Filter
- VCF Wasp Filter clone by Jürgen Haible
- VCF 24 dB Formant
- VCF Diode Ladder Filter by Electronics for Music
- audio mixer with 6 inputs
- effects Alesis PicoVerb
|
4. row 3 HE (from the left to the right):
- exponential VCA (Formant Pro)
- dual linear VCA (Formant Pro)
- ADSR Envelope by René Schmitz
- ADSR Envelope by René Schmitz
- CV mixer with 3 inputs
- voltage meter
- headphone amp
- output device
|
5. row 2 HE (from the left to the right):
|
